Nodes & edges

Nodes

A node is a single unit of knowledge. Every node has:

• A label - its name, shown everywhere it appears (for example, "Onboarding flow").
• A type - the kind of thing it is (Feature, Task, Person, Meeting…). Types come from your space's schema - the set of rules that defines what kinds of things and relationships your space allows. A node's type also gives it a color throughout the app.
• Content - an optional body of text about the node, written in a rich-text editor.
• Attributes - structured fields defined by the node's type, such as a status, a priority, a date, or a number. Which fields are available depends on the schema for that type.

Naumu also records system metadata you don't edit directly, including when a node was created and last updated.

Most nodes are created for you. As you chat in a space, Naumu picks out the things worth remembering and adds them as nodes, wired into your existing memory. You can also work with nodes by hand from the node detail panel - rename one, write in its body, or fill in its attributes.

Edges

An edge is a connection between two nodes. It has a direction - a source and a target - and a relation: the label that says what the connection means, such as Resolves, Relates to, or Owns.

Edges fall into two groups:

• Parent edges define the hierarchy. A parent edge runs from a child up to its parent - so a Task can sit under the Feature it belongs to.
• Other connections are everything else: side-to-side, many-to-many links that relate nodes without nesting one under the other. Relates to is the general-purpose fallback when no more specific relation fits.

Your schema suggests the relations that make sense for a given node - it knows, for example, that a Bug Resolves a Feature. But you're never limited to those suggestions: Relates to always remains an option.

Hierarchy & breadcrumbs

Parent edges - and only parent edges - form your space's tree. Follow a node's parents upward and you reach its ancestors; follow its children downward and you reach its descendants. Side-to-side connections are never treated as hierarchy, so they don't affect a node's place in the tree.

This tree is what powers breadcrumbs: the trail that lets you move from a broad topic down to a specific detail and back up again. A well-shaped tree keeps a space easy to read as it grows.

Reparenting

Reparenting means moving a node - along with everything beneath it - to a new parent. Since the hierarchy is built only from parent edges, this just re-points the node's parent edge; its side-to-side connections and attributes stay intact.

Reparenting is how you reorganize a space as your understanding evolves - pull a misfiled Task under the right Feature, or promote a node to sit higher in the tree.

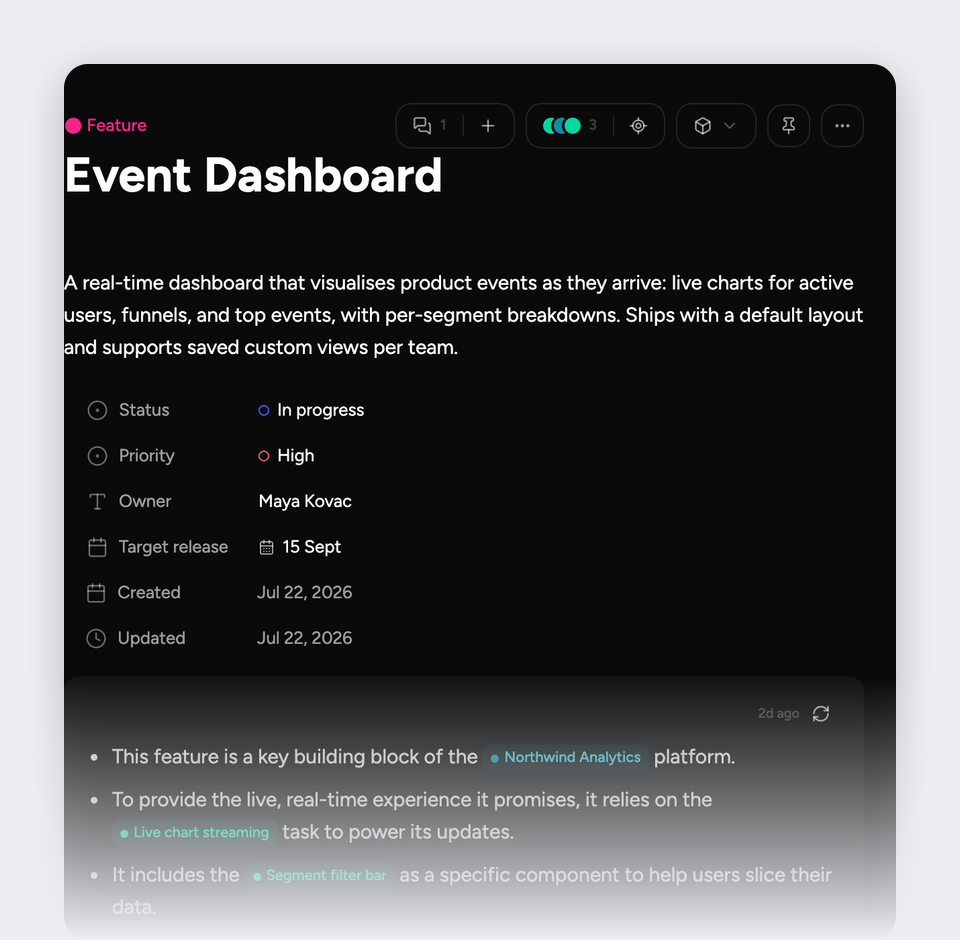

The node detail panel

Opening a node brings up its detail panel - one place to see and shape everything about it. Every node uses the same layout, top to bottom: its type and title, a conversations card, its properties, its files, and its body. From here you can:

• Edit the title inline.
• See the latest conversation about the node on the card at the top; N more chats opens every conversation, split into Direct, Related, and Sources.
• Edit the node's properties in place - its attributes, its Parent, and Created / Updated. Drag a property to reorder it, or open its label's menu (click or right-click it) to Hide attribute; hidden ones collapse into an N more attributes row. Order and visibility apply to every node of that type. New property adds an attribute to the type without leaving the panel. A warning icon at the end of a row flags a value that breaks the schema.
• Browse its Files - a single grid that gathers the notes and uploaded files tied to the node. Note cards carry an Origin badge when the note first created the node, or a Modified badge when it later changed it. The grid only appears when there is something in it.
• Write in its body, a rich-text editor that teammates can edit at the same time, with @ to mention a person or node and # to tag a topic.
• Open Context & connections from the icons in the panel header for an AI-written context summary and the node's connections, grouped by node type or by edge type, with Add connection. The History icon next to it opens the node's edit history.
• Ask Naumu a question about the node directly from the panel.

The ⋯ menu holds Show memory, which opens the memory graph zoomed onto the node, Visibility, Copy Link, and Delete.

Deleting

Deleting a node removes it from your memory. Because the hierarchy is built from parent edges, deleting a node also deletes its descendants - every child, grandchild, and so on beneath it.

When a node has descendants, Naumu asks you to confirm first and tells you exactly what will go (for example, "This will also delete 2 Tasks and 1 User Story"). Deletion cannot be undone, so read the summary before confirming.
